Z-shaped sheet piles are called Zs because the single piles are shaped roughly like a horizontally stretched Z. The interlocks are located as far away from the neutral axis as possible to ensure good shear transmission and increase the strength-to-weight ratio. Z piles are the most common type of sheet pile in North America and can be used in a wide variety of applications.

Applications of Z-shaped Sheet Piles

Types of Z-piles

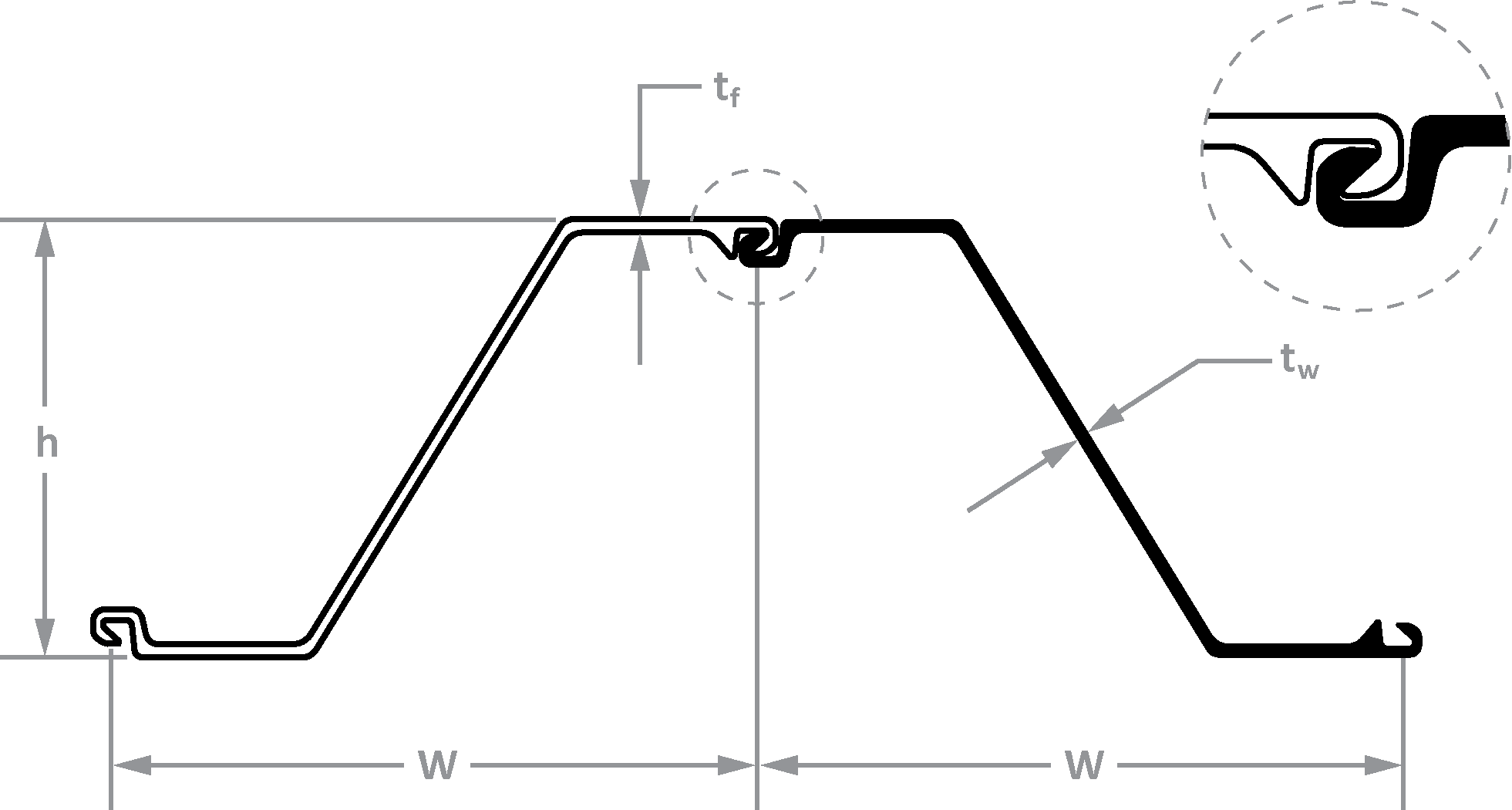

NZ Sheet Pile

Nucor’s new NZ sheet piles are now offered by Nucor Skyline. The Larssen interlock four point connection offers superior performance and shear load transfer. In the domestic range of sheets, the new NZ section is wider than all PZ sections we offer and 11% lighter than the comparable PZ 27 sections. The NZ sheets are also a perfect fit for your federally-funded projects with the Buy American and Buy America provisions.

Download Datasheet

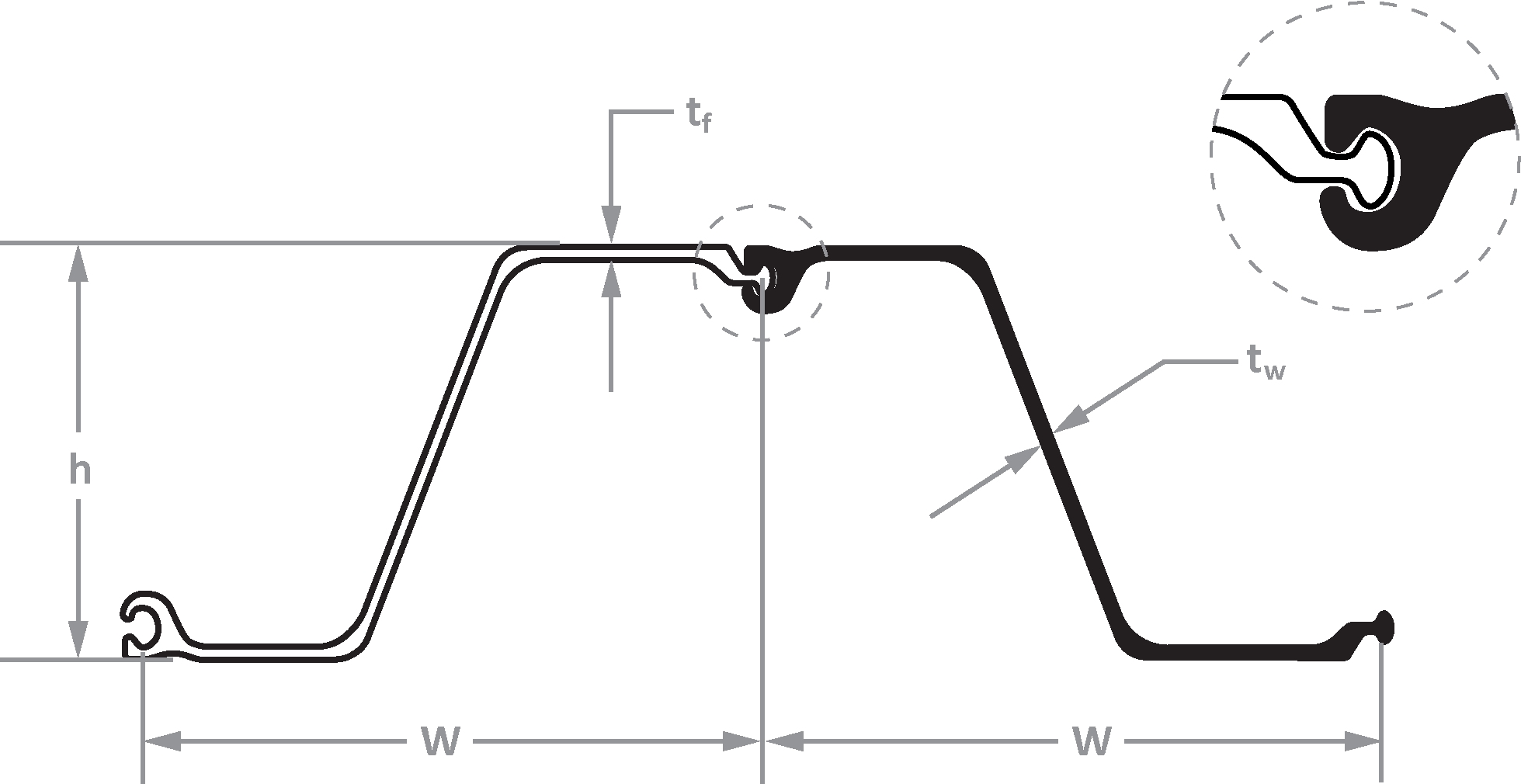

PZ Sheet Pile

PZ sections have been manufactured in the US for many years and are widely recognized by the ball and socket interlock. The PZ sections are good sections for reuse because of their compactness and the durability of the interlock. The ball and socket interlock also allows as much as ten degrees of swing for turning tight curves on the jobsite.

Download Datasheet

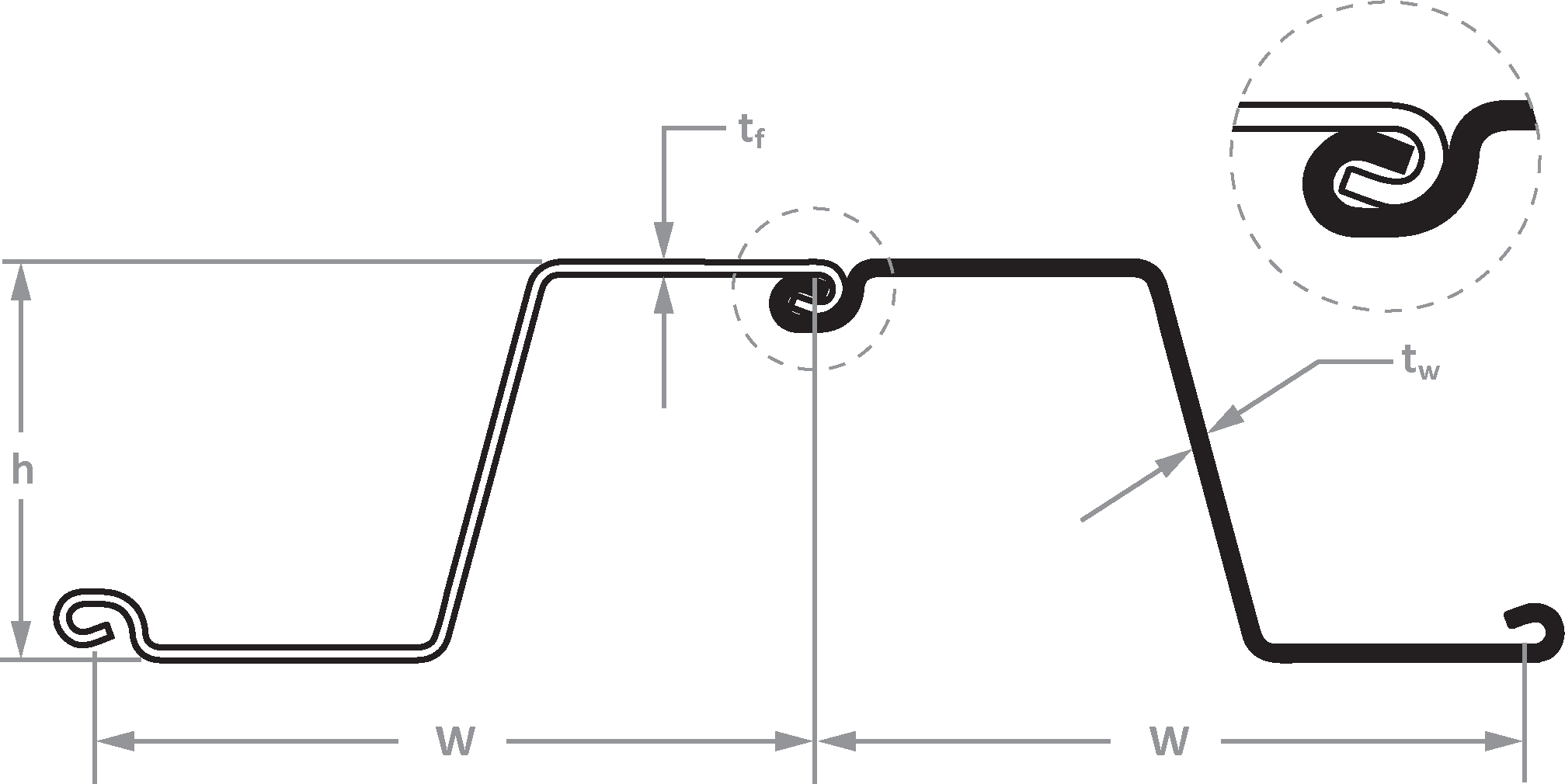

SCZ/SKZ Sheet Pile

SCZ/SKZ piles are cold formed sheet piles produced from steel coil. SCZ/SKZ shapes are generally wide, efficient and allow for greater swing angle than hot rolled sheets. There are many options to choose from that are readily available due to tight and flexible rolling schedules. The variety of SCZ/SKZ sections is made up of five different sizes in several thicknesses.

Download Datasheet

Case Study: Marion Square Parking Garage

Case Study: Marion Square Parking Garage

See how an underground parking structure utilized field-welded sheet pile to combat extremely high water-table conditions.

Download Case Study

Case Study: Cape Croker

Case Study: Cape Croker

Read the story of parallel sheet pile wall utilizing whalers and tiebacks encompass exiting wharf for rehabilitation.

Download Case Study

Technical Product Manual

Technical Product Manual

Get all the information you need about Nucor Skyline's complete line of steel foundation products.

Download Product Manual
